Circular Saw Motor |
Six standard product types are available; S962, S962A, S961, S961A, S955, and S955A. |
|
With a circular saw or cutter attached to the outside diameter section of the shaft-end and fastened with a flange or nut ,etc., the motors can be used to cut, groove or otherwise process wood, metals, resins ,and other materials. |
|
The standard shaft diameter is 25.4mm, but custom-made products of 30mm or 40mm can also be manufactured to order. |
|
The motors can also be custom-made with outputs from 100 W up to approximately 15 kW. |
|
|
|
|
Model |
S962 |
KW |
0.4(0.3) |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60(100) |
Revolution per Minute |
3,000/3,600(6,000) |
Type of casing |
Hermetic |
Rating |
Continuous |
|
|
|
|
|
|
|
Model |
S962A |
KW |
0.75(0.5) |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60(100) |
Revolution per Minute |
3,000/3,600(6,000) |
Type of casing |
Hermetic |
Rating |
Continuous |
|
|
|
|
|
|
|
Model |
S961 |
KW |
1.5(1.1) |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60(100) |
Revolution per Minute |
3,000/3,600(6,000) |
Type of casing |
Hermetic outer fan |
Rating |
Continuous |
|
|
|
|
|
|
|
Model |
S961A |
KW |
2.2(1.6) |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60(100) |
Revolution per Minute |
3,000/3,600(6,000) |
Type of casing |
Hermetic outer fan |
Rating |
Continuous |
|
|
|
|
|
|
|
Model |
S955 |
KW |
3.7(2.8) |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60(100) |
Revolution per Minute |
3,000/3,600(6,000) |
Type of casing |
Hermetic outer fan |
Rating |
Continuous |
|
|
|
|
|
|
|
Model |
S955A |
KW |
5.5(4.5) |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60(100) |
Revolution per Minute |
3,000/3,600(6,000) |
Type of casing |
Hermetic outer fan |
Rating |
Continuous |
|
|
|
|
|
|
Motor for Boring |
|
These motors are for drills which can be used on wood, metals, resins, and other materials. |
|
The motor are available with two different shafts, one with a straight end and the other with a Jacob's Taper.
|
|
These motors can also be customized as double-shaft type motors or with increased accuracy in axial run-out. |
|
|
|
|
Model |
S885 |
KW |
0.4 |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60 |
Revolution per Minute |
3,000/3,600 |
Type of casing |
Hermetic |
Rating |
30 minutes |
|
|
|
|
|
|
|

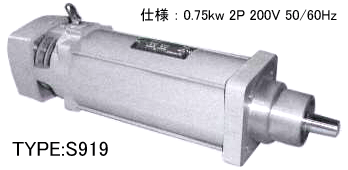

Model |
S919 |
KW |
0.75 |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60 |
Revolution per Minute |
3,000/3,600 |
Type of casing |
Hermetic outer fan |
Rating |
30 minutes |
|
|
|
|
|
|
|

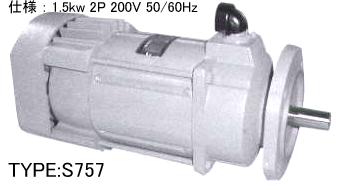

Model |
S757 |
KW |
1.5 |
Poles |
2 |
Voltage |
200 |
Frequency(Hz) |
50/60 |
Revolution per Minute |
3,000/3,600 |
Type of casing |
Hermetic outer fan |
Rating |
Continuous |
|
|
|
|
|
|
|
|
|
